Padel courts
The Fortis Duo is engineered and certified for New Zealand conditions.
Build a club
Build a padel club.
We supply padel courts, covers, lighting and club systems. Full installation and project delivery are offered selectively, subject to our available capacity.
Our own clubs come first. We have limited capacity for external projects and cannot guarantee that we can meet your preferred dates. We confirm scope and availability before committing to any work.
Plan your site, courts and club facilities.
What we deliver
What we can supply and install.
Depending on capacity, we may offer supply only, supply and installation, or project coordination. Our own club projects take priority. Any proposal will confirm the scope and delivery dates we can commit to.
01
02
Padel turf
PadelPro 12 surfaces with a range of colour options to suit your facility.
03
Covered structures
All-weather court covers for one to four courts, spanning MonoLine to QuadSpan.
04
Court lighting
LED court lights with controls that can connect to booking systems.
05
Club automation
Entry and lighting systems that can be linked to bookings. Features and support are agreed for each venue.
06
Booking software
We use Playtomic for bookings at our Dunedin courts.
07
Installation & delivery
Court, glass, and turf installation with contractor coordination and scheduling.
08
Consenting support
Building consent, engineering coordination, documentation, and council liaison.
Explore the dedicated padel courts, New Zealand court construction, and padel software pages.
Our courts
Fortis Duo. Engineered for New Zealand.
Choose a turf colour and viewing angle to preview the court.
A 180° panoramic outdoor court, designed and certified for New Zealand conditions.
Engineering, foundations and consent requirements are confirmed for each site.
- Configuration
- 180° panoramic doubles
- Wind rating
- Up to 150 km/h
- Glass
- 12 mm NZ-certified toughened safety glass
- Structure
- Hot-dip galvanised, powder-coated
- Surface
- PadelPro 12 turf in your choice of colour
Covered structures
Covers for your padel courts.
The DuoSpan structure covers two courts side by side. Discuss a cover layout and specification for your site.
- Footprint
- 25 m × 22.5 m (two courts, DuoSpan)
- Eave height
- 7 m
- Apex height
- 10.411 m
- Frame
- Aluminium-framed structure
- Roof
- Insulated roofing systems
- Options
- Climate control available
The cover range
Six standard cover sizes.
Six default sizes from one court to four, or a custom configuration designed to fit your site.

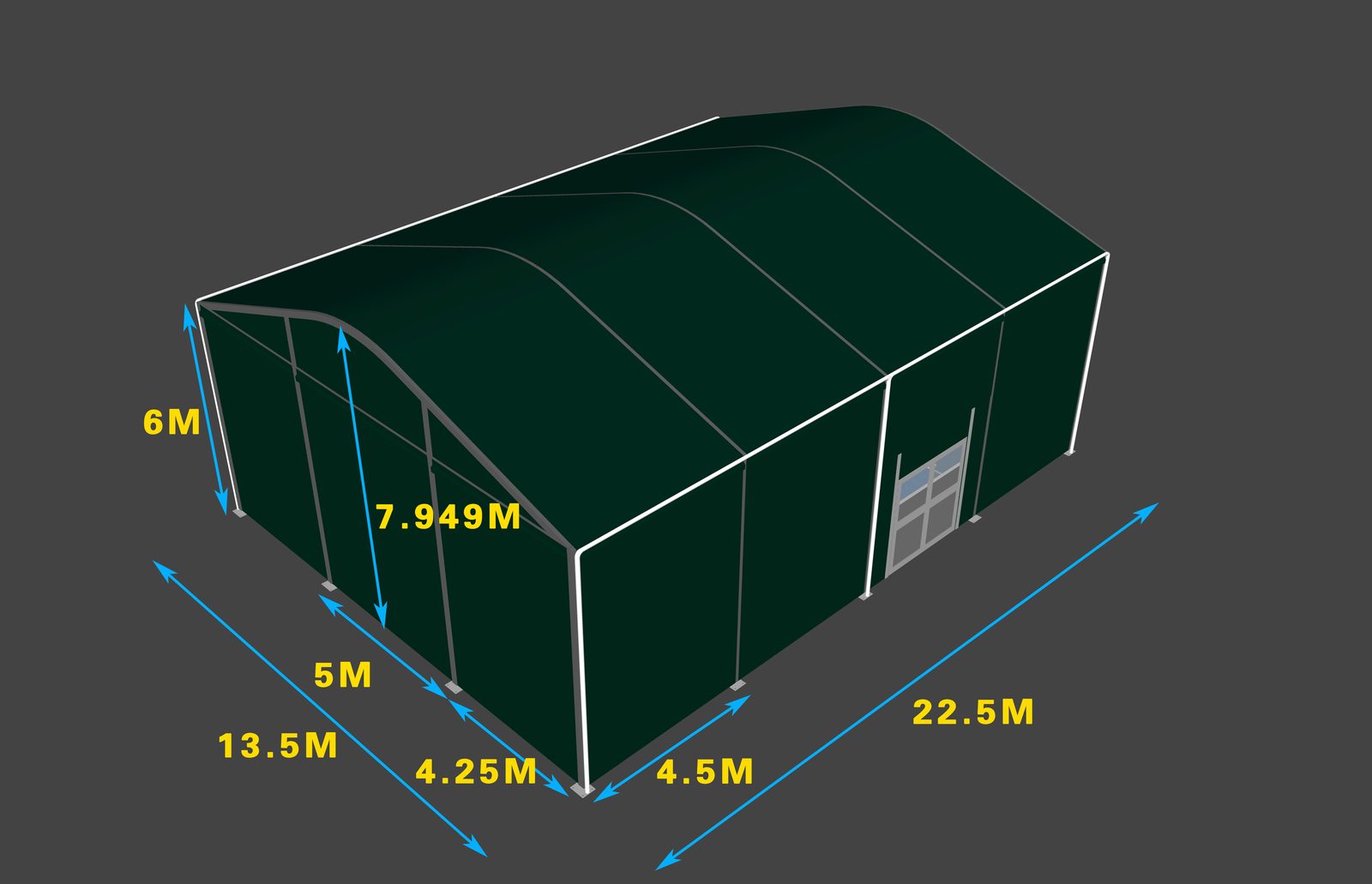

MonoLine
13.5 × 22.5 m · 1 courtThe single-court cover: 6 m eave, 7.9 m apex.

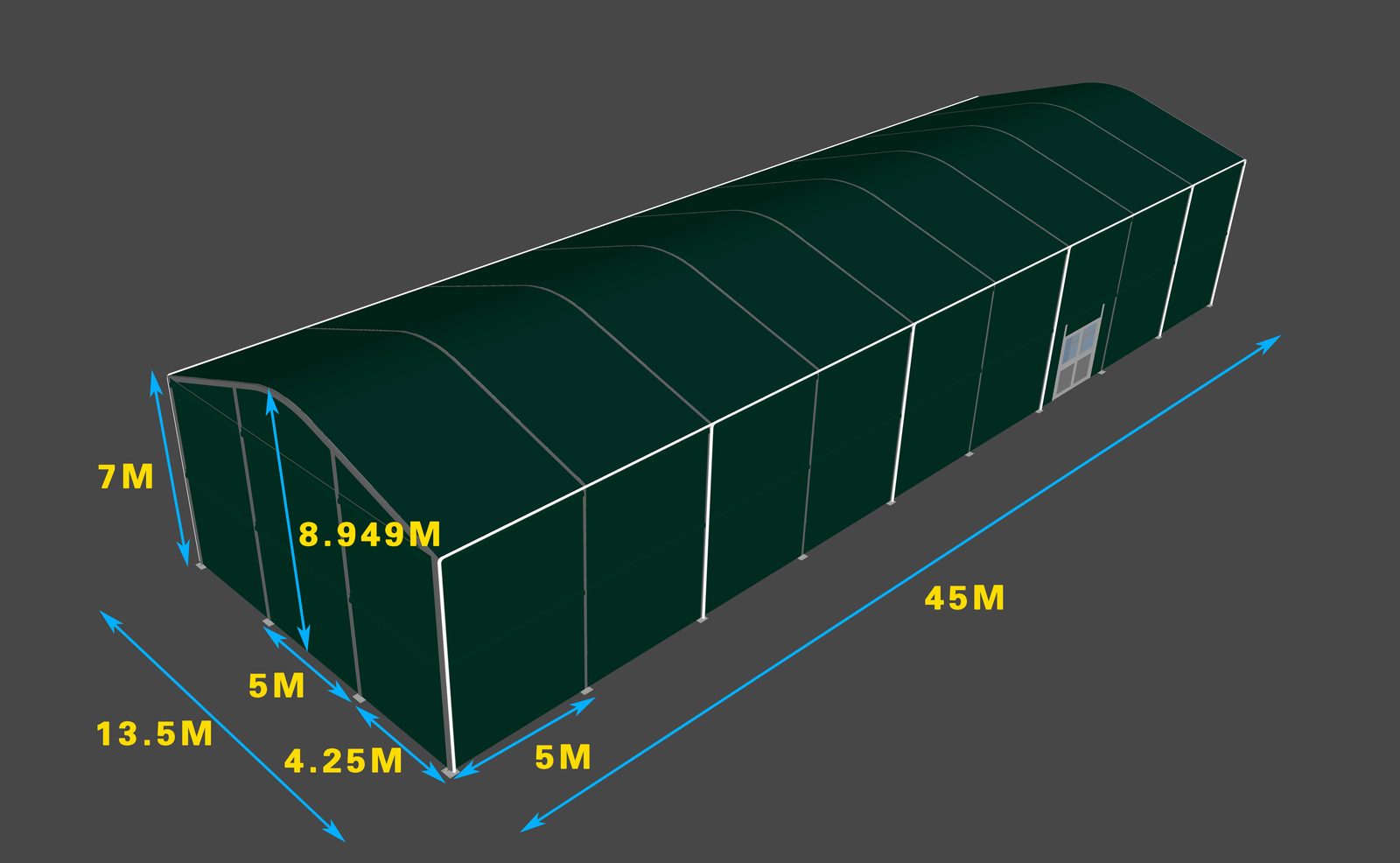

DuoLine
13.5 × 45 m · 2 courtsTwo courts in line: 7 m eave, 8.9 m apex.

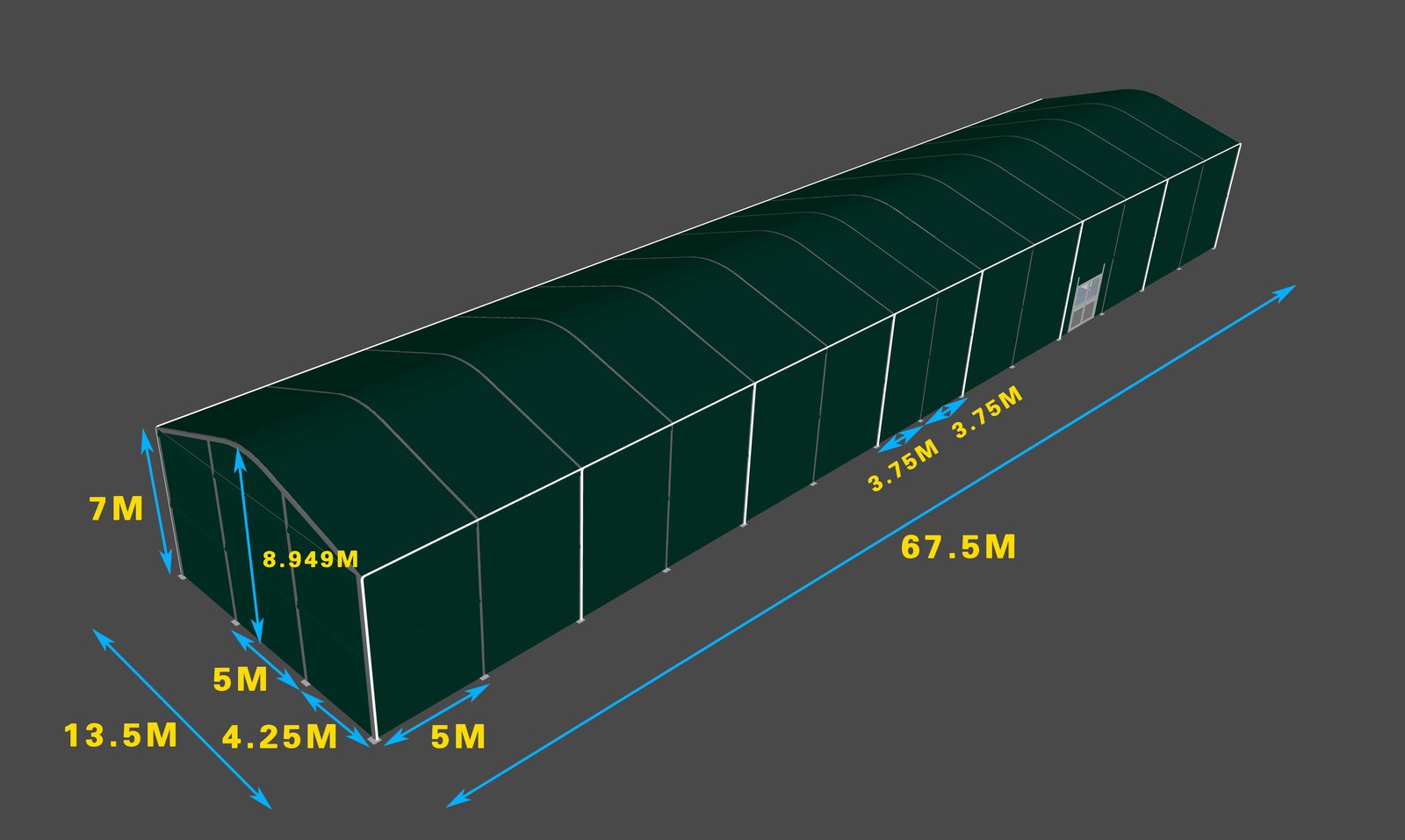

TrioLine
13.5 × 67.5 m · 3 courtsThree courts in line: 7 m eave, 8.9 m apex.

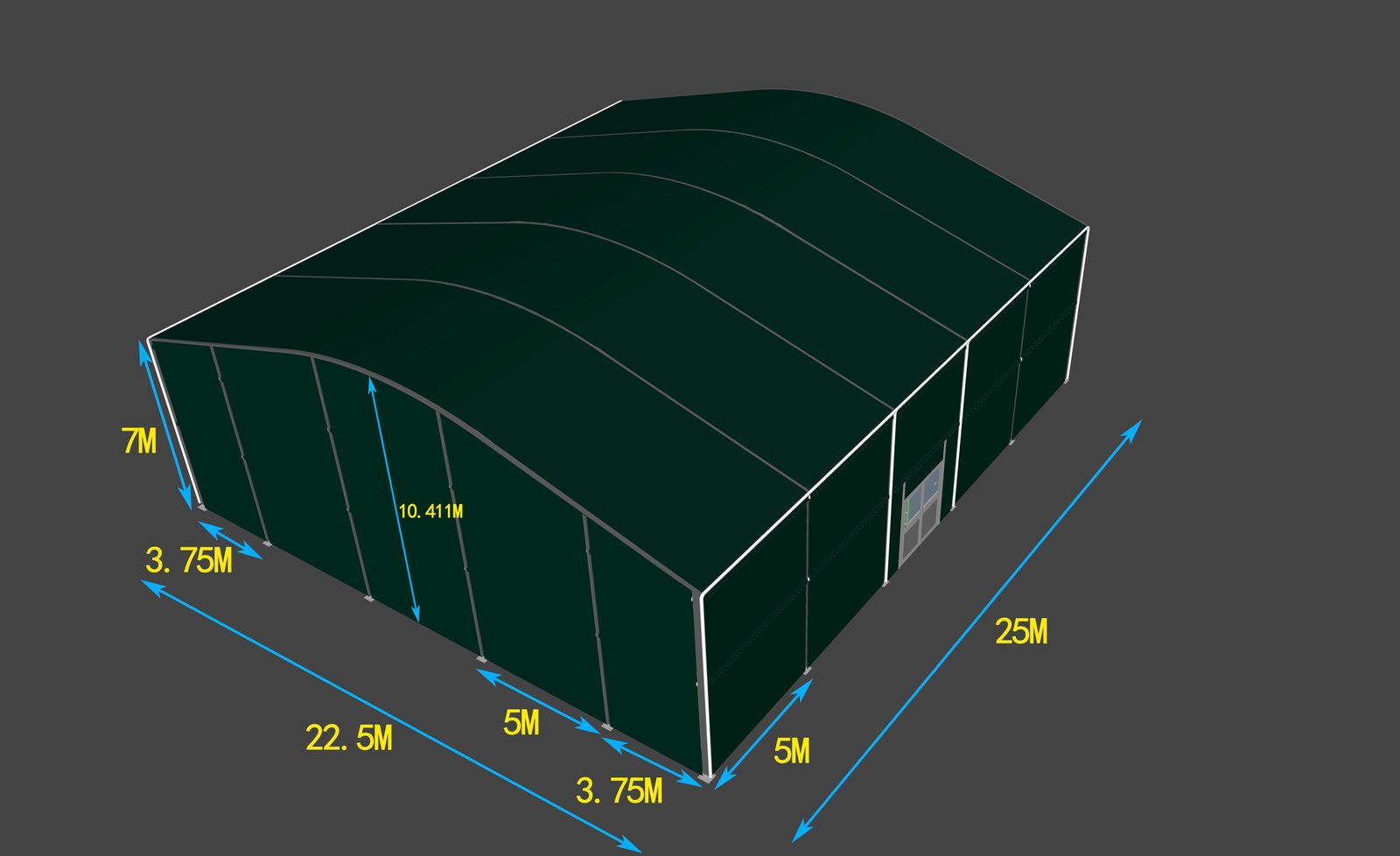

DuoSpan
22.5 × 25 m · 2 courtsTwo courts side by side: 7 m eave, 10.411 m apex.

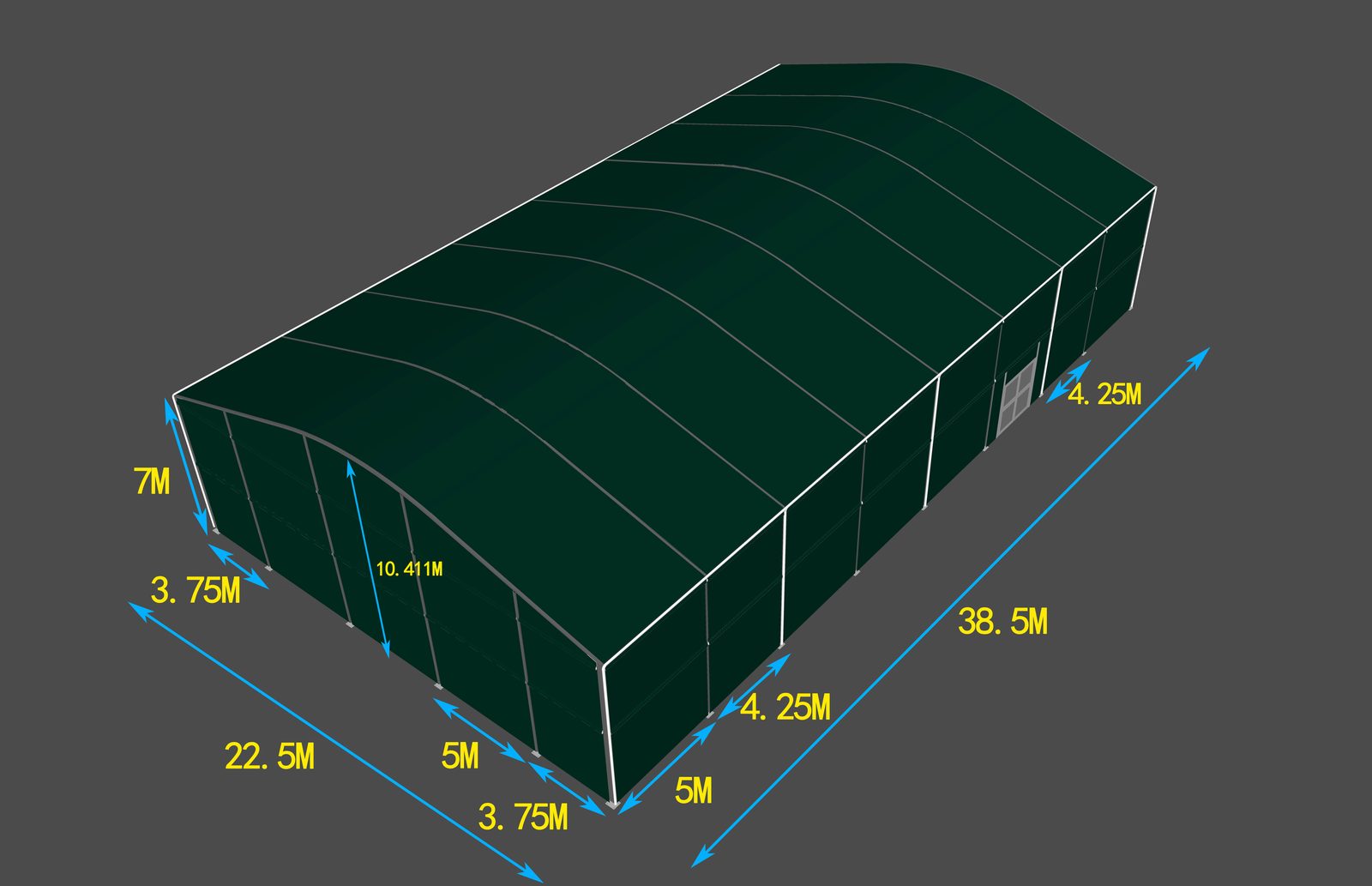

TrioSpan
22.5 × 38.5 m · 3 courtsThree courts side by side: 7 m eave, 10.411 m apex.

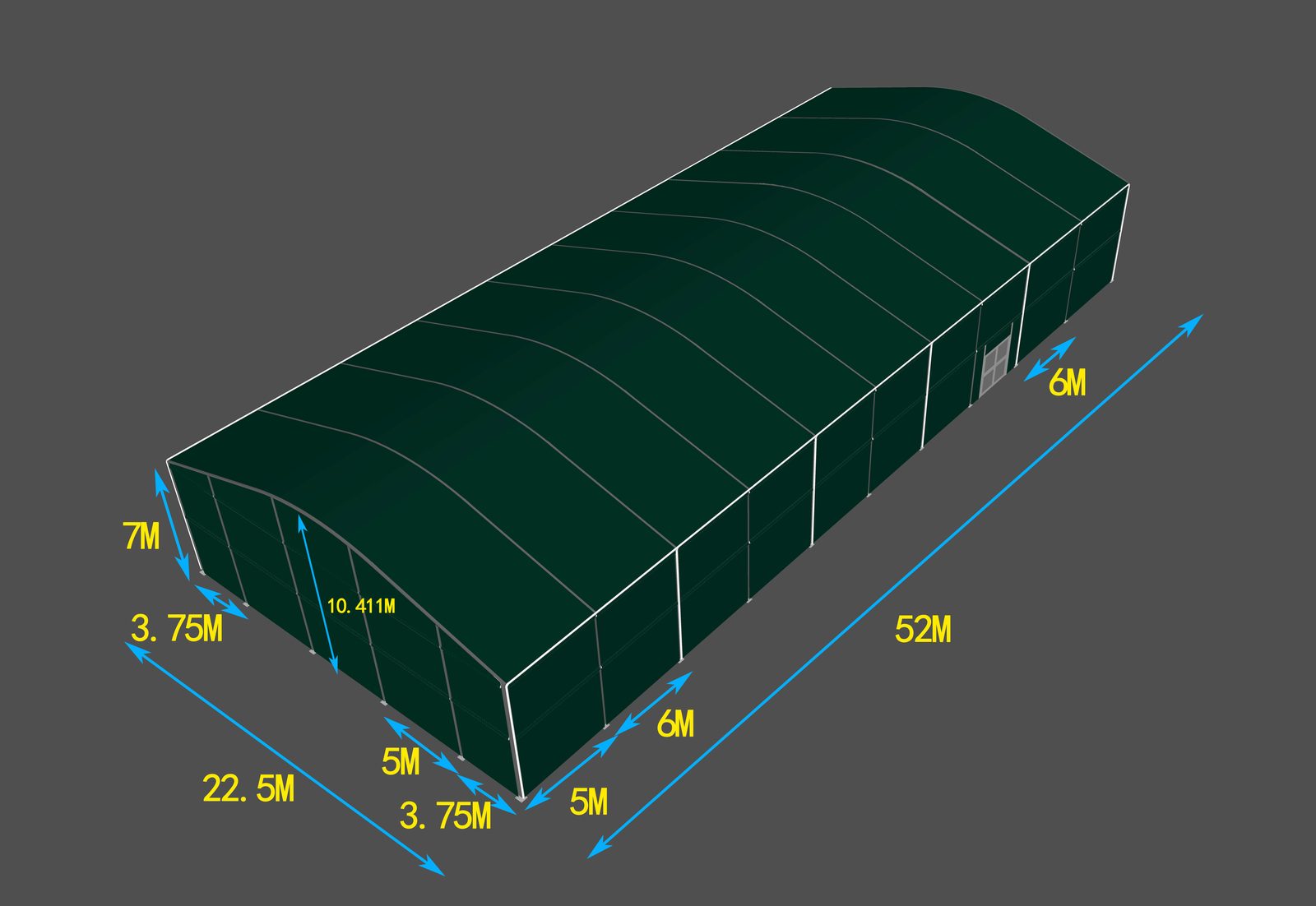

QuadSpan
22.5 × 52 m · 4 courtsFour covered courts: 7 m eave, 10.411 m apex.
Need something that isn't standard? Custom configurations are designed to fit your land, like the L-shaped structure concept for Ōrākei. Exact profiles and specifications are confirmed at proposal.
Court lighting
Lighting for your courts.
Explore PureLine floodlights and PureBeam modular lights for courts and larger venues. The final layout depends on the area you need to light.
1 / 5

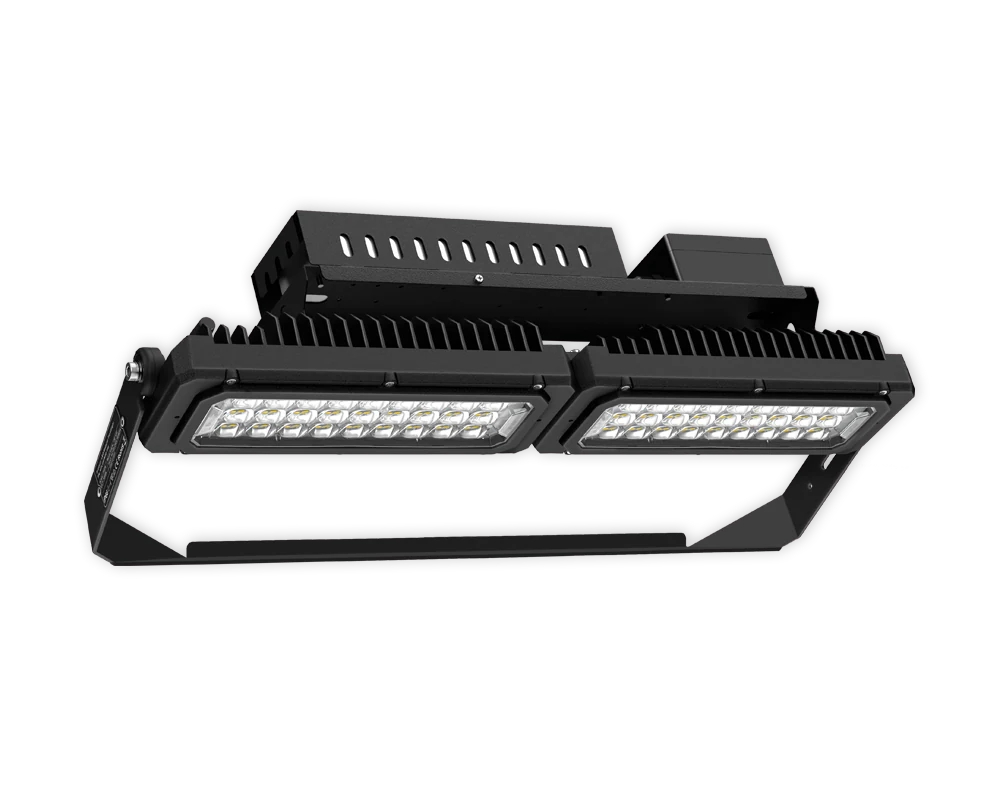

Linear modular · the court standard
PureBeam Linear 2
The unit on our own courts is a linear modular floodlight that lights the glass evenly, without glare.
Light coverage and the layout are planned for each venue.
PureLine and PureBeam Linear suit padel and similar enclosed courts. Larger PureBeam units are available for tennis courts, sports fields and bigger venues.
Club automation
Booking-linked entry and lighting.
Entry codes and court lights can be linked to session times. The examples below show possible features; the setup is agreed for each venue.
01
Book
The court is booked and paid online.
02
Authorise
A unique entry code is issued for the session.
03
Enter
The gate unlocks for the players, at game time.
04
Play
Lights come on for the booked courts, not the whole venue.
05
Expire
Codes and lights end with the session, automatically.
Pure Padel · Club automation
Example
Main gate
Unlocked · booking #4712
Court 1 lights
On until 21:30
Court 2 lights
Next booking 19:00
Sauna
Heating for 19:30 session
Clubhouse climate
Auto · 21°
Entry PIN 4832 active · expires 21:30 · issued by booking
- Time-bound entry: access codes work only for the booked session.
- The right spaces: gates, courts, and facilities open to the right people.
- Remote management: monitor and control connected venue systems.
- More than doors: saunas, recovery, and other club systems can join the automation.
- Player support: agree who can help on site and remotely.
- For your venue: agree the automation features your club needs.
Four ways through the gate.
Possible entry methods include a keypad, app, fob or text message. Available options depend on your venue’s setup.
Gate keypad
A unique PIN per booking.
Valid at game time, expires after.
Valid at game time, expires after.
The club app
Members and staff open gates
and courts from a phone.
and courts from a phone.
Member fobs & cards
Tap-to-enter for members,
regulars, and visit passes.
regulars, and visit passes.
Text-message entry
The booking sends the code
and a tap-to-open link.
and a tap-to-open link.
All access and automation hardware is supplied, installed, and supported by Pure Padel, with an open API connecting bookings, memberships, and visit passes to the door. Explore booking and club software.
Booking software
We partner with Playtomic.
Players use Playtomic to find and book our Dunedin courts. We can discuss booking requirements for your club.
- Court bookings through the Playtomic app.
- Manage bookings and payments through Playtomic.
- Players can find your club and available court times in the app.
- Proven at our own courts. It's how Dunedin books today.
The process
Five steps from first call to delivery.
We start with your site and goals, then confirm the scope and price before ordering.
01
Request a call
Discuss your goals and your site.
02
Price guide
Indicative pricing based on your needs.
03
Project scoping
Confirm the work, responsibilities and site requirements.
04
Proposal
Final proposal and quote.
05
Delivery begins
Ordering and delivery begin.
Built for real-world projects
Plan the work around your site.
Installation varies by site
Access, ground conditions, and working space shape every build.
Civil works depend on conditions
Slab and groundwork are scoped from your site, not a template.
Freight is project-specific
Freight costs depend on the destination and delivery date.
Flexible delivery:
Supply only
Supply + installation
Full project coordination
Start your project
